Manufacturer, exporter & suppliers of carbon steel Tee, stainless steel Tee, alloy steel Tee

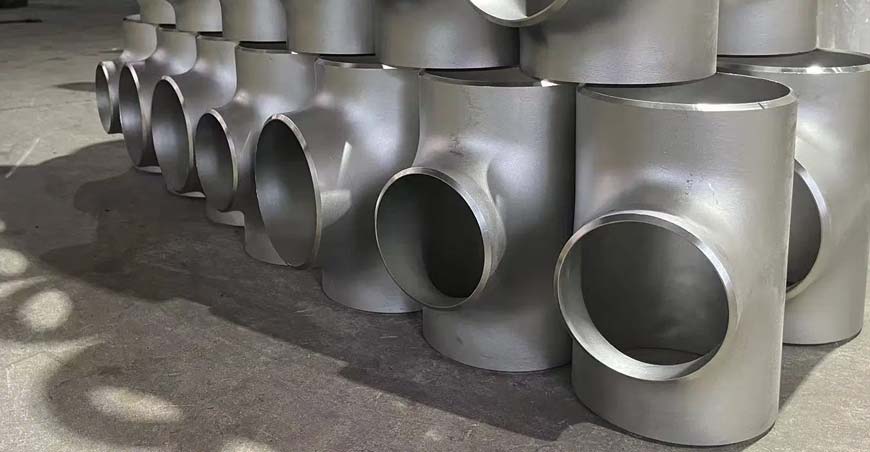

We are manufacturer & exporters of Stainless Steel Tee for the Oil, Gas, Nuclear, Petro-Chemical and Process Industries. We can manufacture Tee upto 48″ with wall thickness ranging from 1.5 mm thickness up to 40mm for varied sizes.
Our factory is located at Village Poman, Taluka Vasai, District Thane, Maharashtra, India. It is easily accessible through NH No.8 and 35 K.M. from International & Domestic airports. We have invested 3 million dollars (20 Million Rupees) to upgrade our factory making it of world level with high grade sophisticated production equipments producing all grades of Pipe Fittings, Butt Welded Fittings with atomization and electric panel control with green technology.
| Type | Butt weld (BW) |
| Butt weld (BW) Standard | ASME / ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings’ ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Butt Weld Equal Tee Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
| Butt Weld Equal Tee Size | 1/2” TO 36”, (Seamless Butt weld up to 24”), (Welded Butt weld 8” TO 36”) |
| Butt Weld Equal Tee Thickness | SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness. |
| Butt weld fittings Range | Elbow, Tee, Reducer, Stubend, Cross, Pipe Cap, Pipe Bend |
| Stainless Steel Butt Weld Equal Tee | ASTM A403 WP316/316L ASTM A403 WP304/304L ASTM A182 F316L, 304L DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Duplex Steel Butt Weld Equal Tee | ASTM A815, ASME SA815 UNS No S31803, S32205 ASTM A815, ASME SA815 UNS No S32750, S32950 |
| Carbon Steel Butt Weld Equal Tee | ASTM A234 Gr. WPB ASTM A420 Gr. WPL6 ASTM A105 ASTM A350 Gr. LF2 ASTM A234 Gr WPB ST37.2, ST35 ASTM / ASME A/SA 234 / 420 WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Low Temperature Butt Weld Equal Tee | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Butt Weld Equal Tee | ASTM A 234 WP – P5, P9, P11, P12, P21, P22 & P91 ASTM A234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91 |
BUTT WELD EQUAL TEE DIMENSIONS
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2″ | 21.3 | 25 | 25 |
| 3/4″ | 26.7 | 29 | 29 |
| 1″ | 33.4 | 38 | 38 |
| 1 1/4″ | 42.2 | 48 | 48 |
| 1 1/2″ | 48.3 | 57 | 57 |
| 2″ | 60.3 | 64 | 64 |
| 2 1/2″ | 73.0 | 76 | 76 |
| 3″ | 88.9 | 86 | 86 |
| 3 1/2″ | 101.6 | 95 | 95 |
| 4″ | 114.3 | 105 | 105 |
| 5″ | 141.3 | 124 | 124 |
| 6″ | 168.3 | 143 | 143 |
| 8″ | 219.1 | 178 | 178 |
| 10″ | 273.0 | 216 | 216 |
| 12″ | 323.8 | 254 | 254 |
| 14″ | 355.6 | 279 | 279 |
| 16″ | 406.4 | 305 | 305 |
| 18″ | 457.0 | 343 | 343 |
| 20″ | 508.0 | 381 | 381 |
| 22″ | 559.0 | 419 | 419 |
| 24″ | 610.0 | 432 | 432 |
The dimensions are in millimeters
Source : ASME B16.9 – 2007
*Conforming to ASTM A403, ANSI B16.9, ANSIB16.28 *316/L Stainless steel Welded *Schedule10S Wallt hickness *Sizes1/2”to10” Nominal Bore
Type of Tee
Type A Tee, Decreased pressure factor
Same wall thickness on the weld ends and on the fi tting body as for a pipe with the same specifi ed wall thickness. Their resistance to internal pressure is less than that of a pipe with the same diameter, same wall thickness and made of the same grade of steel.
The required calculation methods are based on the calculation standards defined in EN 13480-3
Type B Tee, Full pressure factor
Increased wall thicknesses on the fi tting body, same resistance to internal pressure as for a pipe with the same diameter, same wall thickness and made of the same grade of steel.
The required calculation methods are based on the calculation standards defined in EN 13480-3
Tee Dimensions & Tolerances
Click on below to check pipe fittings dimensions
- Dimensions of Buttweld Fittings (ANSI B 16.9 & B 16.28)
- Dimensions of Buttweld Fittings (ANSI B 16.9 & MSS SP 43)
- Dimensions of Reducing Tees (ANSI B 16.9) -Page 1
- Dimensions of Reducing Tees (ANSI B 16.9) -Page 2
- Dimensions of Class 150 Flanges (ANSI B 16.5)
- Dimensions of Class 300 Flanges (ANSI B 16.5)
- Dimensions of Class 600 Flanges (ANSI B 16.5)
- Dimensions of Class 900 Flanges (ANSI B 16.5)
- Dimensions of Class 1500 Flanges (ANSI B 16.5)
- Dimensions of Class 2500 Flanges (ANSI B 16.5)
- Dimensions of Socket-Welding Fittings (ANSI B16.11)
- Dimensions of Socket- Weld and Threaded Union
- Dimensions of Forged Threaded Fittings (ANSI B 16.11)
- Dimensions of Plugs & Bushings (ANSI B 16.11)
- Dimensions of Threaded Fittings (ANSI B 16.11)
- Dimensional Tolerances of Flanges (As per ANSI B 16.5) (mm)
- Dimensional Tolerances of Fittings (ANSI B 16.9, B 16.28)
Tee Marking
Each fitting must be permanently marked.
Marking through hard stamping.
- Manufacturer‘s mark or logo
- Country of manufacture (ISO-Code)
- “EN2” as reference to this standard
- “B” for fittings of type B
- Steel name or steel number
- “W” (for welded fittings or fittings that are manufactured from welded pipes)
- Cast number or code number
- Mark of the inspection representative
- Outside diameter D*
- Wall thickness T*
Preparation Tee for shipment, handling and packaging
EN 10253-2 Fittings & Tee are delivered with or without surface protection at the discretion of the manufacturer.
EN 10253-4 Fittings & Tee are delivered by the manufacturer in normal packaging, without surface protection, and without end protectors (caps). Special packaging, protective coverings, and end protectors (caps) can be agreed.
