Manufacturer, exporter & suppliers of carbon steel Pipe End Caps/Plugs, stainless steel Pipe End Caps/Plugs, alloy steel Pipe End Caps/Plugs
We are manufacturer & exporters of Stainless Steel Pipe End Caps/Plugs for the Oil, Gas, Nuclear, Petro-Chemical and Process Industries. We can manufacture Pipe End Caps/Plugs upto 48″ with wall thickness ranging from 1.5 mm thickness up to 40mm for varied sizes.
Our factory is located at Village Poman, Taluka Vasai, District Thane, Maharashtra, India. It is easily accessible through NH No.8 and 35 K.M. from International & Domestic airports. We have invested 3 million dollars (20 Million Rupees) to upgrade our factory making it of world level with high grade sophisticated production equipments producing all grades of Pipe Fittings with atomization and electric panel control with green technology.

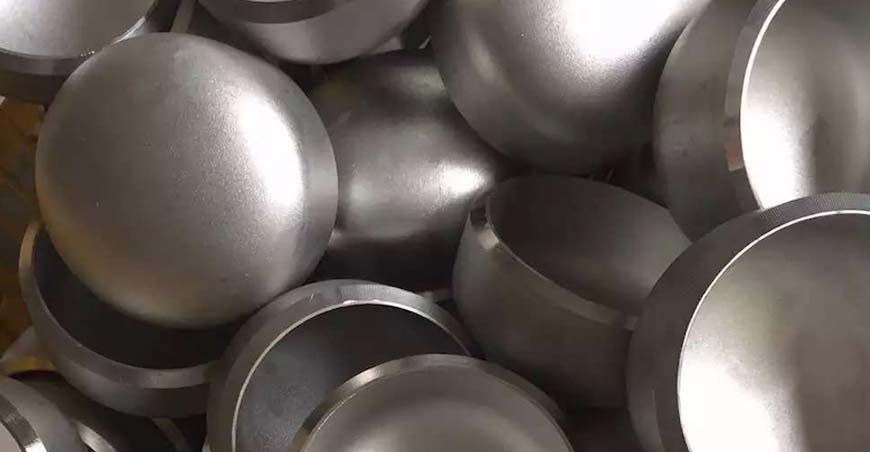

Buttweld Pipe End Cap Production Range -PIPE END CAPS – ROUND, OVAL
| Outside Diameter | Pipe End Cap ( 1/2″ ～48″) |
| Wall Thickness | 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Value Added Services | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Copper, Cupro Nickel, Inconel, Monel, Hastelloy |
| Manufacturing Standards | ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43 DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 EN: EN10253-1, EN10253-2 |
| Stainless Steel Pipe end caps/ Plugs | ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Carbon Steel Pipe end caps/ Plugs | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Alloy Steel Pipe end caps/ Plugs | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Nickel Alloy Pipe end caps/ Plugs | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
| Duplex & Super Duplex Pipe end caps/ Plugs | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 |
Type of Pipe End Caps/Plugs
Type A Pipe End Caps/Plugs, Decreased pressure factor
Same wall thickness on the weld ends and on the fi tting body as for a pipe with the same specifi ed wall thickness. Their resistance to internal pressure is less than that of a pipe with the same diameter, same wall thickness and made of the same grade of steel.
The required calculation methods are based on the calculation standards defined in EN 13480-3
Type B Pipe End Caps/Plugs, Full pressure factor
Increased wall thicknesses on the fi tting body, same resistance to internal pressure as for a pipe with the same diameter, same wall thickness and made of the same grade of steel.
The required calculation methods are based on the calculation standards defined in EN 13480-3
Pipe End Caps/Plugs Dimensions & Tolerances
Click on below to check pipe fittings dimensions
- Dimensions of Buttweld Fittings (ANSI B 16.9 & B 16.28)
- Dimensions of Buttweld Fittings (ANSI B 16.9 & MSS SP 43)
- Dimensions of Reducing Tees (ANSI B 16.9) -Page 1
- Dimensions of Reducing Tees (ANSI B 16.9) -Page 2
- Dimensions of Class 150 Flanges (ANSI B 16.5)
- Dimensions of Class 300 Flanges (ANSI B 16.5)
- Dimensions of Class 600 Flanges (ANSI B 16.5)
- Dimensions of Class 900 Flanges (ANSI B 16.5)
- Dimensions of Class 1500 Flanges (ANSI B 16.5)
- Dimensions of Class 2500 Flanges (ANSI B 16.5)
- Dimensions of Socket-Welding Fittings (ANSI B16.11)
- Dimensions of Socket- Weld and Threaded Union
- Dimensions of Forged Threaded Fittings (ANSI B 16.11)
- Dimensions of Plugs & Bushings (ANSI B 16.11)
- Dimensions of Threaded Fittings (ANSI B 16.11)
- Dimensional Tolerances of Flanges (As per ANSI B 16.5) (mm)
- Dimensional Tolerances of Fittings (ANSI B 16.9, B 16.28)
Pipe End Caps/Plugs Marking
Each fitting must be permanently marked.
Marking through hard stamping.
- Manufacturer‘s mark or logo
- Country of manufacture (ISO-Code)
- “EN2” as reference to this standard
- “B” for fittings of type B
- Steel name or steel number
- “W” (for welded fittings or fittings that are manufactured from welded pipes)
- Cast number or code number
- Mark of the inspection representative
- Outside diameter D*
- Wall thickness T*
Preparation Pipe End Caps/Plugs for shipment, handling and packaging
EN 10253-2 Fittings & Pipe End Caps/Plugs are delivered with or without surface protection at the discretion of the manufacturer.
EN 10253-4 Fittings & Pipe End Caps/Plugs are delivered by the manufacturer in normal packaging, without surface protection, and without end protectors (caps). Special packaging, protective coverings, and end protectors (caps) can be agreed.
Certificates & Approvals
