A860 WPHY 65 Fittings manufacturers in India
FitTech Industries Pvt. Ltd. was established in 1985 and have 3 decades of experience in manufacturing carbon steel pipe fittings and flanges in accordance to ASME B16.9/ B16.11 with commitment to provide world class quality to our customers at competitive price by using innovative production system and process.
Our factory is located at Village Poman, Taluka Vasai, District Thane, Maharashtra, India. It is easily accessible through NH No.8 and 35 K.M. from International & Domestic airports. We have invested 3 million dollars (20 Million Rupees) to upgrade our factory making it of world level with high grade sophisticated production equipments producing all grades of Pipe Fittings, Butt Welded Fittings, Flanges with atomization and electric panel control with green technology.
We procure quality raw materials from reputed manufacturers in India & Europe to manufacture carbon steel pipe fittings and carbon steel flanges according to ASME, EN, ISO and DIN standards. Now FitTech has emerged with high volume of quality production at reduced time with competitive price focusing totally on customer satisfaction with high class quality with committed early delivery at competitive price.
What is A860 WPHY 65 Pipe Fittings?
This specification covers wrought high-strength low-alloy WPHY 65 butt-welding steel fittings of seamless and electric fusion-welded construction for applications in high-pressure gas and oil transmission and distribution systems. Starting materials shall consist of plate, sheet, forgings, forging quality bar, and seamless or fusion-welded tubular products with filler metal added. Materials shall be heat treated by normalizing, quenching, and tempering or stress relieving. Specimens shall conform to required values of chemical composition and mechanical properties, namely: yield strength, tensile strength, elongation, notch toughness, and hardness. This specification does not require hydrostatic testing.
A860 WPHY 65 Carbon Steel Pipe Fittings Specifications
| WPHY 65 equivalent | |
|---|---|
|
A860 WPHY 65
|
A860 Grade WPHY 65 Fittings |
|
A694 WPHY 65
|
A694 Grade F65 Flanges |
|
A234 WPHY 65
|
A234 Grade WPB Carbon Steel Fittings A234 AISI 4130 High Strength Low Alloyed Steel Fittings |
|
Grade Specification
|
Carbon Steel: ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A420 WPL6 |
|
WPHY 65 Fittings Size
|
Seamless:from 1/2″ to 24″ |
| Welded:from 24″ to 96″ (or as customer requirements) |
|
|
WPHY 65 Fittings Degree
|
22.5 deg, 30deg,45 deg,90 deg,180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D. |
|
WPHY 65 Fittings Thickness
|
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS |
|
Standard
|
ASME B16.9, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
|
Carbon Steel Material
|
Carbon steel (ASTM A234 WPB, A234WPC, A420 WPL6, etc) |
| Stainless steel (ASTM A403 WP304, 304L, 316, 316L, 321,etc) |
|
| Alloy steel (ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91, etc) |
|
|
WPHY 65 Fittings Type
|
Seamless / Welded / Fabricated |
|
WPHY 65 Fittings Bending Radius
|
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
|
WPHY 65 Fittings Range
|
½” NB to 48″ NB in Sch 10s, 40s, 80s, 160s, XXS. From 1/2 to 30 (Seamless Pipe Fittings), Form16 to 100 (Seam Pipe Fittings) |
|
Dimensions
|
ANSI/ASME B16.9, B16.28, MSS-SP-43. |
|
Applicable Standards
|
1-ASME B 16.9 for large Bore 2-ASME B 16.11 for small Bore (socket welded) 3-ASME B 16.25 for butt weld ends 4-ASME B 16.28 for small radius elbow |
| Seamless/ Welded 100% Radiography Tested | |
ASTM A860 mss sp75 wphy 65 pipe fittings welded concentric reducer for conduit pipe
| Standard | Description |
|---|---|
| ASTM A182/A182M | Forged or rolled alloy steel pipe flanges, forged fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| ASTM A403/A403M | Wrought austenitic stainless steel piping fittings. |
| ASTM A815/A815M | Wrought ferritic, ferritic/austenitic and martensitic stainless steel piping fittings. |
| AS 2129 | Flanges for pipes, valves and fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ANSI B16.5 | Steel pipe flanges and flanged fittings. |
| ANSI B16.9 | Factory-made wrought steel butt-welding fittings. |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI B16.25 | Butt-welding ends. |
| MSS SP43 | Wrought stainless steel butt-welding fittings. Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| BS21 | Threading. |
| ISO 4144 | Stainless steel fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI – B 16.9 ASTM A403 – ASME SA403 |
‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ |
| API 590-605 ASME B16.9 |
‘Factory-Made Wrought Buttwelding Fittings’ |
| ASME B16.25 | ‘Buttwelding Ends’ |
| ASME B16.28 | ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ |

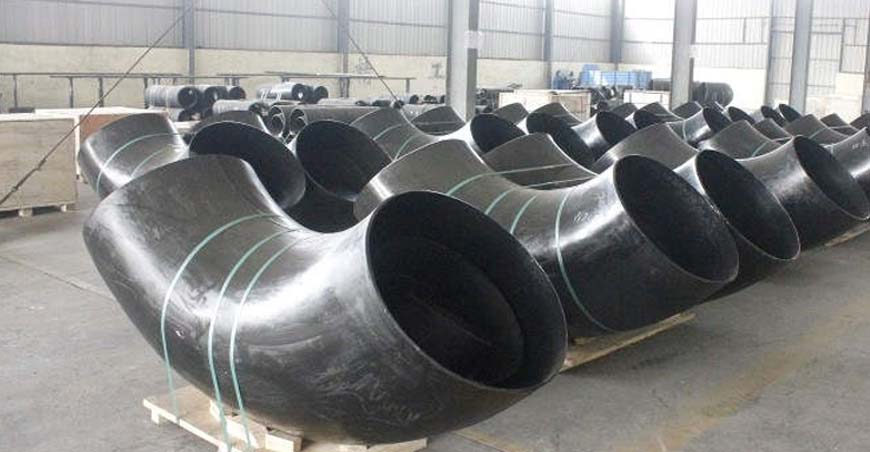

WPHY 65 Carbon Steel Elbows
Standard: ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M-1996, DIN2605 / 2615 / 2616, Special design available All the production process are made according to ISO 9001:2008 strictly. Grade Specification: Carbon Steel: ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70 Low temperature Steel: A420 WPL3 / A860 WPHY 65 Pipe Fittings Manufacturers |
Certificates & Approvals
